Modals

Modals are a great way to ask for user input via Discord itself. It works like a form, and it's integrated into Discord's UI. We can currently only add text inputs to modals, but soon we'll be able to configure checkboxes, dropdowns, and more.

In this page, we'll see how to create a modal, and handle the user's input.

A modal contains the following properties:

A title, displayed at the top of the modal
A ID, to identify the modal once the user send a response
A list of components

Info

The way a modal's structure work is as follows:

Each component is either a label or a text display
A label, besides its title/description, will contain a child, which is either a text input or dropdown

Let's create a modal with a title, a text input and a choice dropdown:

CodeResult

# Create the modal
set {_modal} to new modal with id "feedback-form" named "Bot Feedback Form"

# Create a short input for the title
set {_title} to new short text input with id "title" with value "Feedback: "
set placeholder of {_title} to "Enter a brief title for your feedback"
set minimum range of {_title} to 3
set maximum range of {_title} to 50
set required state of {_title} to true

# Each (interactive) component must have a label (THAT label is the one added to the modal)
set {_titleLabel} to new label "Feedback Title" with {_title} with description "We'd love to hear your thoughts!"

# Create a longer input for the description
set {_desc} to new text input with id "description" with value "This%nl%Is%nl%A new line :O"
set placeholder of {_desc} to "Please provide detailed feedback about the bot..."
set minimum range of {_desc} to 10
set maximum range of {_desc} to 1000
set required state of {_desc} to true

set {_descLabel} to new label "Detailed Feedback" with {_desc} with description "Your detailed feedback helps us improve!"

# Create a dropdown for rating
set {_dp} to new dropdown with id "rating"
set min range of {_dp} to 1
set max range of {_dp} to 1
set placeholder of {_dp} to "Select a rating..."

add new option with value "5" named "5 Star" with description "You loved this thing!" with reaction "⭐" to options of {_dp}
add new option with value "4" named "4 Star" with description "You liked this thing!" with reaction "⭐" to options of {_dp}
add new option with value "3" named "3 Star" with description "It was okay." with reaction "⭐" to options of {_dp}
add new option with value "2" named "2 Star" with description "You didn't like this thing." with reaction "⭐" to options of {_dp}
add new option with value "1" named "1 Star" with description "You hated this thing!" with reaction "⭐" to options of {_dp}

set {_ratingLabel} to new label "Your Rating" with {_dp} with description "How would you rate your experience?"

# We can also add text display directly!
set {_t} to new text display "### [Butterfly Fields](https://sky-children-of-the-light.fandom.com/wiki/Daylight_Prairie#Butterfly_Fields)%nl%Text on another line? Yea it works, but it's better to just add a new text :)" with unique id 1000

# Add components to the modal.
# For text inputs/dropdowns, you must wrap them into a label first! Text display may be added directly.
add {_t} to rows of {_modal}

add {_titleLabel} to rows of {_modal}
add {_descLabel} to rows of {_modal}
add {_ratingLabel} to rows of {_modal}

You can remove the short keyword to create a longer input (that'll look like a text area)

Modal

Great. As you may notice, we can configure the text input with a few properties:

The ID, to identify the input once the user send a response
The placeholder, displayed when the input is empty
The minimum and maximum range of the input (in characters)
Whether the input is required or not

In addition, we can also configure the label with a title and an optional description.

Did you notice?

In this case only, you may define a required state for dropdowns!

A modal can only be sent via an interaction. For instance, a slash command or a button click. Here's some example of its usage:

Slash CommandButton Click

on slash command:
    event-string is "mycommand"
    set {_modal} to ... # create the modal

    show {_modal} to the user

on button click:
    event-string is "mybutton"
    set {_modal} to ... # create the modal

    show {_modal} to the user

Info

As you may notice, we use the show expression to send the modal. It can be used in any interaction event.

Handling the user's response

Once the user has filled the modal and clicked on the "Submit" button, the bot will receive a on modal receive event.

Keep in mind the ID used for each interactive component:

Text inputs will return single string
Dropdowns will always return an array/a list of strings (even if you only selected one option, or min/max is set to 1)

on modal receive:
    event-string is "unique-id" # (1)

    # Get the values from the inputs
    set {_title} to value of text input with id "title"
    set {_desc} to value of text input with id "description"

    # dropdown may returns an array; in our case (min/max is 1) it will always be a single value array
    set {_rating::*} to value of dropdown with id "rating"
    set {_rating} to first element of {_rating::*}

    # Simple validation for the rating
    if {_rating} parsed as number is not between 1 and 5:
        reply with hidden ":x: Rating must be between 1 and 5!"
        stop

    # go on with your datas ...

The event-string is the ID of the modal. It's the one configured in the new modal with id expression.

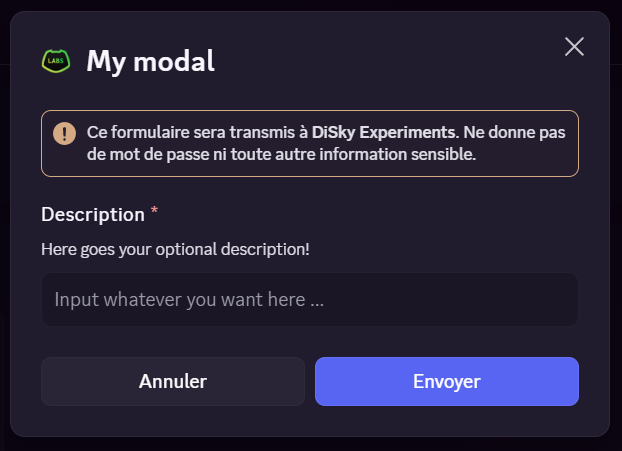

The result of the code above will look like this:

Warning

Although the modal event is an interaction, you cannot show another modal in it. If you want to show a modal after the user has filled the previous one, you'll need an 'intermediate' interaction (like a dropdown or a button click).
